300Bar Double Acting Piston Seals Hydraulic Cylinders NCF Seal TPM Type Seal

  • 1
  • 2

Place of Origin : GUANGDONG ,CHINA

Brand Name : YOUCHANG/ZHIPAN

MOQ : 5 pcs

Model Number : NCF

Certification : UDEM

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs per week

Delivery Time : 2-3 work days

Packaging Details : PP bag ,carton, pallet

Material : NBR/FKM+PTFE+NY

Feature & Advantage : Sealing Function, High Pressure Resistance

Tempreture : - 50℃ to 120℃

Product Name : Double-acting Hydraulic Cylinder Seals

Speed : ≤ 0.5m/s

Applications : construction of hydraulic cylinders, cylinders for cranes, lifts, cylinders

Contact Now

Double-acting hydraulic cylinder Piston NCF seal 100*88*42 TPM type seal
Product Descriptions
Product NameDouble-acting Hydraulic Cylinder Seals, TPM Type Seal Kit for Piston
MaterialNBR/FKM+PTFE+NY
Tempreture~ 50℃ to 120℃
Maximum Pressure≤ 300 Bar
Speed≤ 0.5m/s
SizeStandard Size TPM Type Seal Kit for Piston
Feature & AdvantageSealing Function, High Pressure Resistance
PackageInner clear plastic bag/outside carton/wooden pallets/ or any other special package as per customer’s requirements.
Applicationsconstruction of hydraulic cylinders, cylinders for cranes, lifts, cylinders

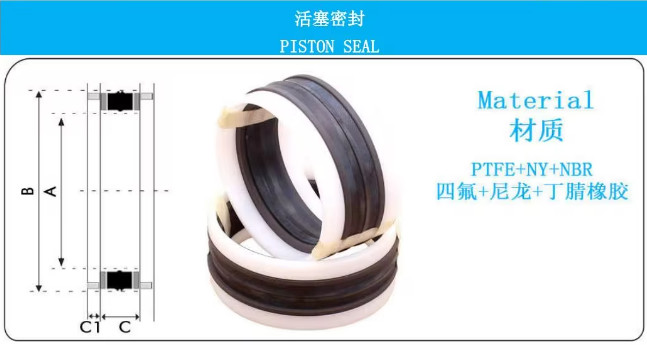

Material details
Composed of five elements:
Central part made of NBR.
Two supporting rings made of the PTFE material.
Two NYLON guide rings.
FKM verson is also available. The unique combination of material in which this seal is produced guarantee low friction were high pressure is present. In the presence of harsh working conditions this sealing element is also available in special material able to withstand high temperatures.

Product display
300Bar Double Acting Piston Seals Hydraulic Cylinders NCF Seal TPM Type Seal

Diemansions

Part No.SIZEPart No.SIZE
NCF3-5850*38*28NCF5-6363*51*42
NCF3-6363*51*28NCF5-7070*58*42
NCF3-8080*68*28NCF5-8080*68*42
NCF3-9090*78*28NCF5-9090*78*42
NCF3-100100*88*28NCF5-100100*88*42
NCF3-110110*98*28NCF5-110110*98*42
NCF3-120120*108*28NCF5-120120*108*42
More size, plz feel free to contact us!
