Piston Seal SPGW Compact Seals SPGW Hydraulic Seals for Construction Mechanical
Description
SPGW seal is suitable for use in reciprocating hydraulic cylinders. It has double sealing performance under high load and high pressure working environment. Especially suitable for long time and high temperature environment. Simple trench structure.
SPGW seals are designed for double-acting hydraulic cylinders used in heavy-duty hydraulic equipment. It is ideal for heavy-duty applications and ensures high maintainability. It consists of a Teflon compound outer ring, a rubber inner ring and two nylon support rings. Rubber elastic rings provide stable radial elasticity to compensate for wear. The use of rectangular rings of different materials allows the SPGW model to adapt to a wide range of working conditions. It has the advantages of wear resistance, impact resistance, high pressure resistance, and easy installation.

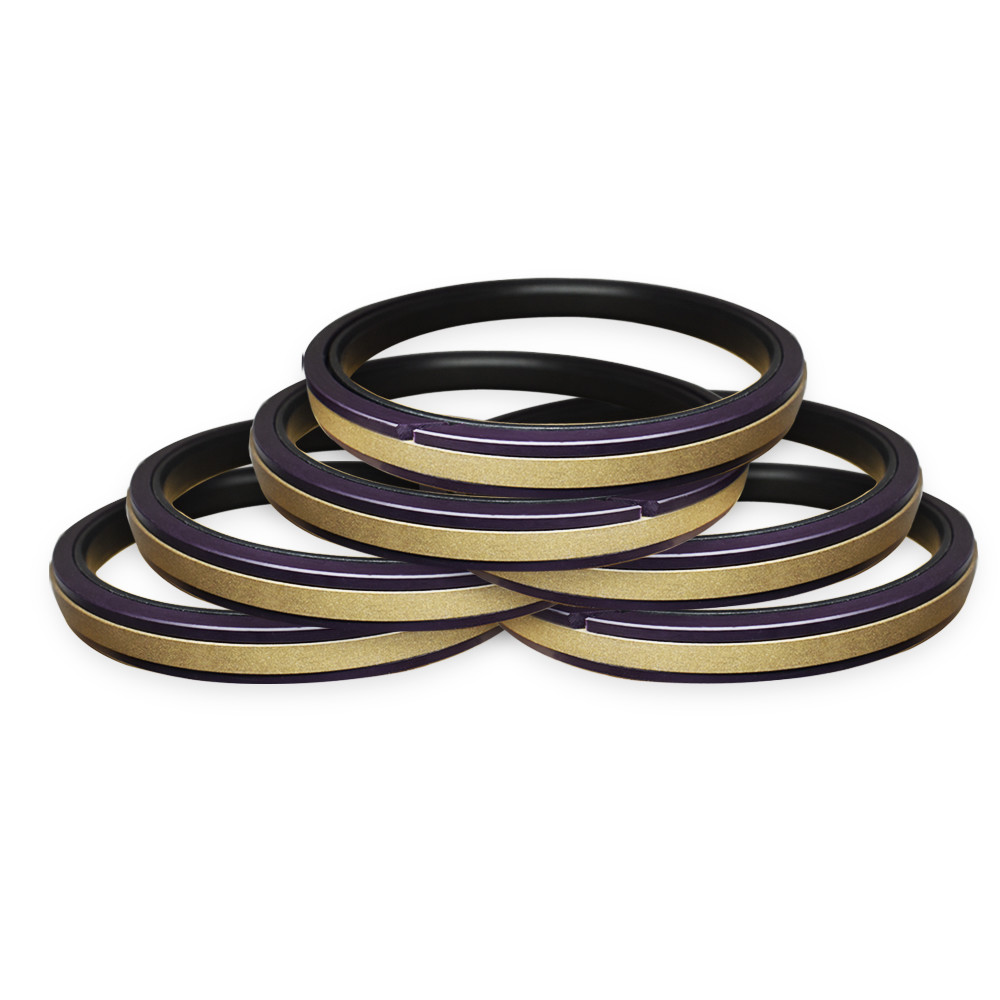

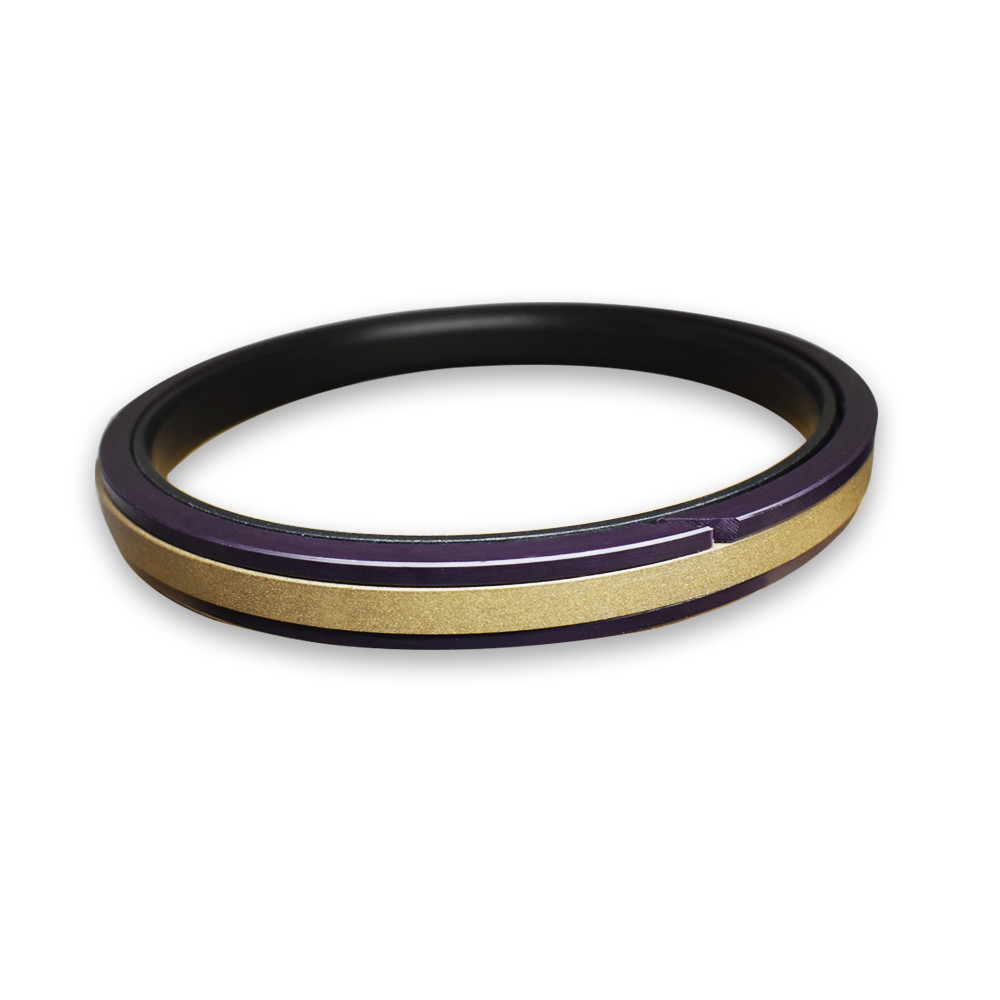

Product Display
Material
Profile seal: PTFE with 40% -60% bronze
Back up ring: NYLON- black color
Pressure ring: NBR - black color
Technical Data
Diameter range: 50-300
Working conditions
Pressure: 50-300 Mpa
Speed: ≤1.5m/s
Temperature: -30~+110℃
Media: Hydraulic oils (Mineral oil-based) / Fire resistant hydraulic fluid / Water and other medium
Advantages
glide quickly
Long service life
Convenient groove design, easy to install
Very good sealing performance even with pressure peaks
Even when working in a high-pressure environment, it has very good sealing performance
Applications
to reciprocating hydraulic systems
Suitable for high temperature environment and large freight forwarding gap
Heavy construction machinery or cylinder piston
